Closed Loop Cooling System for Asic Miner Oil Cooling

• Overview
• Product Description
• Detailed Photos
• Product Parameters
• Our Advantages
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	Customized
Type	Air-Cooled
Cooling Water	Industrial Water
System Type	Closed System
Fans Species	Double-speed fan
Noise Level	Low
Application Fields	Immersion Cooling
Certification	ISO
Condition	New
Tube Material	Stainless Steel, Aluminum, Hot DIP Carbon Steel
Defrost	Hot Gas Defrost, Electrical Defrost, Water Defrost
Fin Space	5-20mm
Fin Material	Aluminum, Stainless Steel, Hot DIP Carbon Steel
Mounting	Floor Standing
Transport Package	Wooden Package
Specification	According to the product
Trademark	VRCOOLER
Origin	China
Production Capacity	2000PCS/Months

Product Description

Vrcooler Provide two solution for our customer.
One Immersion Cooling Solution is Dry Cooler direct cooling.
Another Immersion cooling solution is Dry coolers and plate heat exchangers combined with indirect cooling. This is currently the most popular and economical cooling method.
We designed a standard dry cooler model for an immersion cooling system. From 40KW to 240KW. Customized immersion cooling solutions are also available.
40KW Dry Cooler for Immersion Cooling System:
Suitable for the single immersion enclosure.

Dry coolers are mainly for machine cooling, process cooling, oil cooling, free cooling, and crypto mining cooling.

Product Description

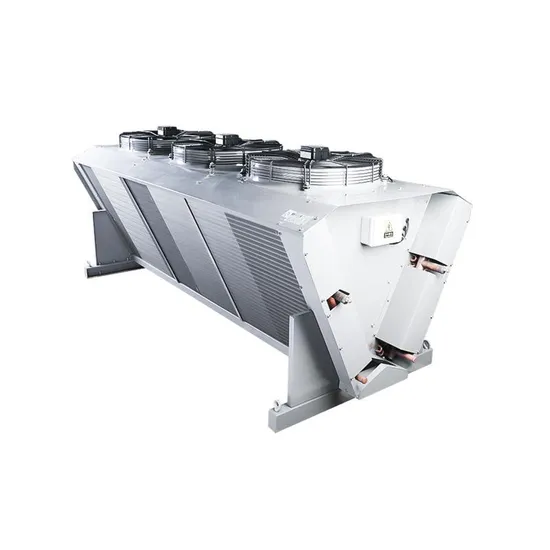

For crypto mining cooling, if using an immersion cooling system, our dry cooler is the most cost-effective way to remove heat and is a necessary component of the immersion cooling system, We designed a full range of immersion-optimized dry coolers. From 20kW single fan unit to the V-shaped 5MW dry coolers.

Detailed Photos

TECHNICAL SPECIFICATION
TUBES	Aluminum, copper, stainless steel, Cu-Ni, titanium
	12 mm, 1/2", 5/8", 20mm, 25mm
FINS	Aluminum, copper, stainless steel, titanium
CASING MATERIAL	Thick. 1 - 3 mm
	Galvanized steel, Aluminium, Stainless steel, Copper, Brass

Name: Tube Standard tubes are 5/8", 1/2" ,5/8", 20, 1" OD, 304, 316 stainless steel, copper, titanium, hot dip galvanized steel, or aluminum. Tubes are arranged inline in the direction of airflow for maximum heat transfer with minimum air side pressure drop.

Name: FinStandard fin material is aluminum, copper, stainless steel, and titanium. Fins are die-formed into a corrugated (waffle) configuration to encourage turbulent airflow and improve heat transfer efficiency. Fins do have varied types of space.

Name: Cabinet Standard cabinet/casing material is corrosion-resistant galvanized steel. We also supply aluminum, stainless steel cabinet, and casing

Product Parameters

40KW Dry Cooler Direct Cooling		40KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capacity:	40KW	Capacity:	40KW
Fluid Temperature(Inlet/Outlet)(ºC)	60/40	WATER Temperature(Inlet/Outlet)(ºC)	40/60
Air Temperature(Inlet/Outlet)(ºC)	35/46.1	Liquid Temperature(Inlet/Outlet)(ºC)	65/45
Power Standard	220V/1Ph/50Hz	No. of plates	73
Dimensions	1687x700x952mm	No. of effective plates	71
Material:	Copper Tube Aluminum Fin GI Steel powder coating Casing	Plate material	ALLOY 316
		Thickness	0.4mm
		Number of passes	4

120KW Dry Cooler for Immersion Cooling System:

Suitable for the Immersion Rack System.

120KW Dry Cooler Direct Cooling		120KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capacity:	120KW	Capacity:	120KW
Fluid Temperature(Inlet/Outlet)(ºC)	60/40	WATER Temperature(Inlet/Outlet)(ºC)	40/60
Air Temperature(Inlet/Outlet)(ºC)	35/46.1	Liquid Temperature(Inlet/Outlet)(ºC)	65/45
Power Standard	460V/1Ph/60Hz	No. of plates	121
Dimensions	3410x1115x700mm	No. of effective plates	119
Material:	Copper Tube Aluminum Fin GI Steel powder coating Casing	Number of passes	4
		Extension capacity	4
		Plate material	ALLOY 316
		Thickness(mm)	0.4

240KW Dry Cooler for Immersion Cooling System:

Suitable for multiple Immersion Racks.

240KW Dry Cooler Direct Cooling		240KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capacity:	240KW	Capacity:	240KW
Fluid Temperature(Inlet/Outlet)(ºC)	60/40	WATER Temperature(Inlet/Outlet)(ºC)	40/60
Air Temperature(Inlet/Outlet)(ºC)	35/45.85	Liquid Temperature(Inlet/Outlet)(ºC)	65/45
Power Standard	460V/1Ph/60Hz
Dimensions	4165X2100X1710mm
Material:	Copper Tube Aluminum Fin GI Steel powder coating Casing

1) We can help buyers design specific products or produce products according to buyers' designs.
2) We have exported to many countries, such as Israel, the USA, German, Canada, etc.
3)Rapid response to your needs: We will reply within 24 hours of receiving your letter. If you have urgent thing, welcome to call us.
4)The Most Efficient Service, Best Quality, and Excellent Reputation.

Our Advantages

MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co., Ltd specializes in researching, manufacturing, and exporting Heat Exchangers, Evaporators, Condensers, air coolers, and other heat transfer equipment for varied industries since 2004.

OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in a long-term business relationship with our customers which is based on integrity, responsiveness, and quality.

Company Profile

Q1. Are you a manufacturer or Trade Company? We are a manufacturing factory and we can accept OEM orders.Q2. What's the order process? 1) Inquiry---provide us with all clear requirements. 2) Quotation---official quotation list with all clear specifications. 3) PI--Confirm all the order technical data and price 4) Payment terms--- T/T deposit in advance 5) Production---mass production 6) Shipping--- by sea. A detailed picture of the package will be provided. 7) After-sales Service--Any questions, we will try our best to assist to solve for you.Q3. How to get a prompt quotation? When you send the inquiry to us, pls kindly send it with the below technical information. A. Function: Cooling only or cooling and heating? B. Capacity: _____KW or ___Ton C. Refrigerant: R407C, R410a or R134a D. Voltages and Frequency : ______V/PH/HZ E.Application:

FAQ
