2023 Bc888 Air Cooled Condenser for Bitcoin Mining Cooling System

Basic Info.

Model NO.	D2-251
Type	Air Cooled Condenser
Material	Copper
Structural Form	Horizontal
Heat Transfer Mode	Recuperative
Form	Fixed Tube-Sheet
Application Field	Cooling System
Certification	RoHS, ISO, CE
Condition	New
Feature	Air Cooled Condenser
Inlet/Outlet Pipe Diameter	2-1/2" mm
Heat Transfer	30.46kw
Air Pressure	1 Bar
Low-Noise High-Efficiency Fan	Running of Low Temperature Condition
Fan Motor Power	790
Cooling Method	Direct Cooling
Compressor Type	Scroll
Ambient Temperature	40 Degree
Product Name	Air Cooled Condenser with Ziehl-Abegg Fan Motor
Transport Package	Wooden Packing
Specification	ISO9001: 2000
Trademark	Shenglin
Origin	Shanghai, China
HS Code	8415909000
Production Capacity	3000units/Month

Product Description

air cooled condenser for power plant with explosion ploof motor

air cooled condenser Features

1. High efficiency heat exchanger: capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
2. Fan: only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw.Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Air separator for each fan.
3. We facilitate you to have a long lasting and low maintenance operation. Durable material and rigid enclosure with hard gloss powder coated finish. Protective enclosure for both manifolds and U-bends. Unit design for outdoor installation. 100% leakage tested at 31bar.

air cooled condenser Options:
1. Coil design refrigerant: water, oil, glycol.

1. Multiple circuits.
2. Sub-cooling circuits.
3. Stainless steel or aluminum casing.
4. Coated aluminum or copper fins.
5. Explosion ploof motor.
6. Customized fin spacing.

air cooled condenser Application:
Industrial field: process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.


air cooled condenser Technical parameter:
Dry cooler D2 series parameter(fin space 2.1mm)

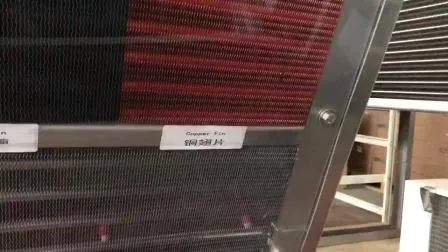

air cooled condenser pictures:




air cooled condenser package

Type				D2-148-4x630	D2-166-4x630	D2-175-4x630	D2-228-6x630	D2-250-6x630	D2-276-6x630	D2-310-8x630	D2-343-8x630	D2-364-8x630	D2-392-10x630
Capacity	Water	KW		147.99	165.85	175.21	227.85	250.42	276.53	309.85	342.73	364.07	391.99
	20% Et. Glycol	KW		142.42	161.57	170.91	219.09	244.69	270.22	301.18	333.55	354.64	383.3
Air flow		M3/h		76459	74341	72134	114686	111511	108188	152911	148675	144255	191136
Fan		No. X φ		2x2x630	2x2x630	2x2x630	2x3x630	2x3x630	2x3x630	2x4x630	2x4x630	2x4x630	2x5x630
Fan motor 400/3N/50HZ		A		20.4	20.4	20.4	30.6	30.6	30.6	40.8	40.8	40.8	51.00
Sound pressure level		dB(A)10m		64	64	64	66	66	66	67	67	67	68
Dimension		L	mm	2186	2186	2186	3250	3250	3250	4250	4250	4250	5250
		H	mm	1874	1874	1874	1874	1874	1874	1874	1874	1874	1874
		D	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
		D1	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		L1	mm	963	963	963	963	963	963	963	963	963	963
		L2	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
		L3	mm	1963	1963	1963	2963	2963	2963	3963	3963	3963	4963
Connections inlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Connections onlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Product weight(empty)			kg	769	811	853	1134	1197	1261	1498	1589	1673	1864
